- General Information
- Manufacturer
- ZOTAC International
- Manufacturer Website Address
- http://www.zotac.com
- Brand Name
- Zotac
- Product Line
- ZBOX nano
- Product Series
- C
- Product Type
- Barebone System

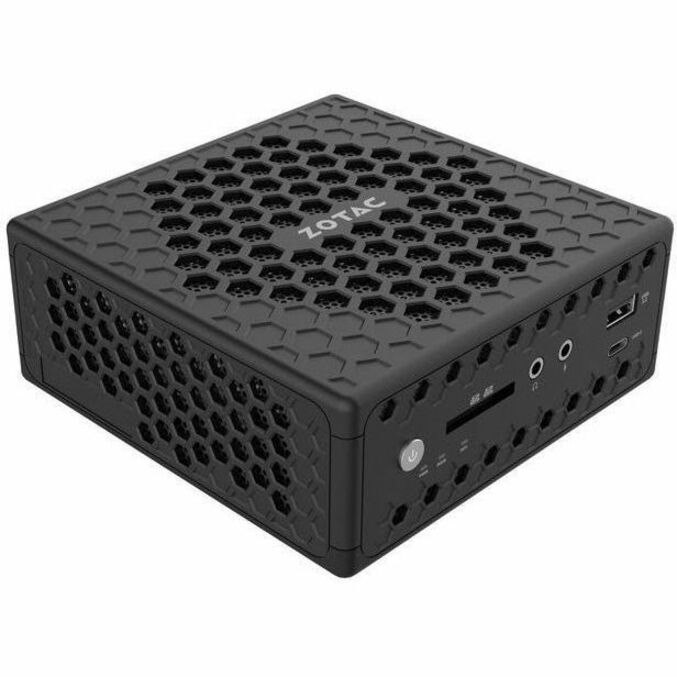

The ZBOX CI337 nano features a power-efficient next-generation Intel N-Series processor to give you a silent experience in a compact PC. A robust, passive cooled design with no moving components brings high reliability and extended durability. The signature honeycomb vents throughout the chassis enhances exhaust flow, backed by a large aluminum heatsink that maximizes heat transfer from the CPU to keep the system operating with consistant performance. A VESA mount is included to enable more possibilities when mounting this mini PC. The ZBOX CI337 nano is the ideal compact PC for home theater, digital signage, light productivity and everyday tasks, and more.
- Processor
- Processor Manufacturer
- Intel
- Processor Type
- N-series
- Processor Model
- N100
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 800 MHz
- Maximum Turbo Speed
- 3.40 GHz
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 16 GB
- Memory Technology
- DDR5 SDRAM
- Memory Standard
- DDR5-4800/PC5-38400
- Total Number of Memory Slots
- 1
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- PCI Express NVMe 3.0 x1
- Supported Storage Drive Types
- HDD
- SSD
- Controllers
- Controller Type
- Serial ATA/600
- NVMe
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.2
- I/O Expansions
- Number of M.2 Interfaces
- 1
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 4
- Number of USB 3.2 Ports
- 3
- USB Type-C (Front)
- Yes
- USB Type-C Detail
- 1 x USB 3.2 Type-C (Supports DP output over USB-C)
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- DisplayPort
- Yes
- Operating System
- Operating System Supported
- Windows 11
- Physical Characteristics
- Form Factor
- Mini PC
- Height
- 2.2"
- Width
- 5"
- Depth
- 5"
- Miscellaneous
- Package Contents
- ZBOX CI337 nano Barebone
- Power Adapter and Cable (bundled cable type dependent on region)
- Wi-Fi Antenna
- VESA Mount Bracket (w/ 4 screws)
- Warranty Card
- Quick Install Guide
