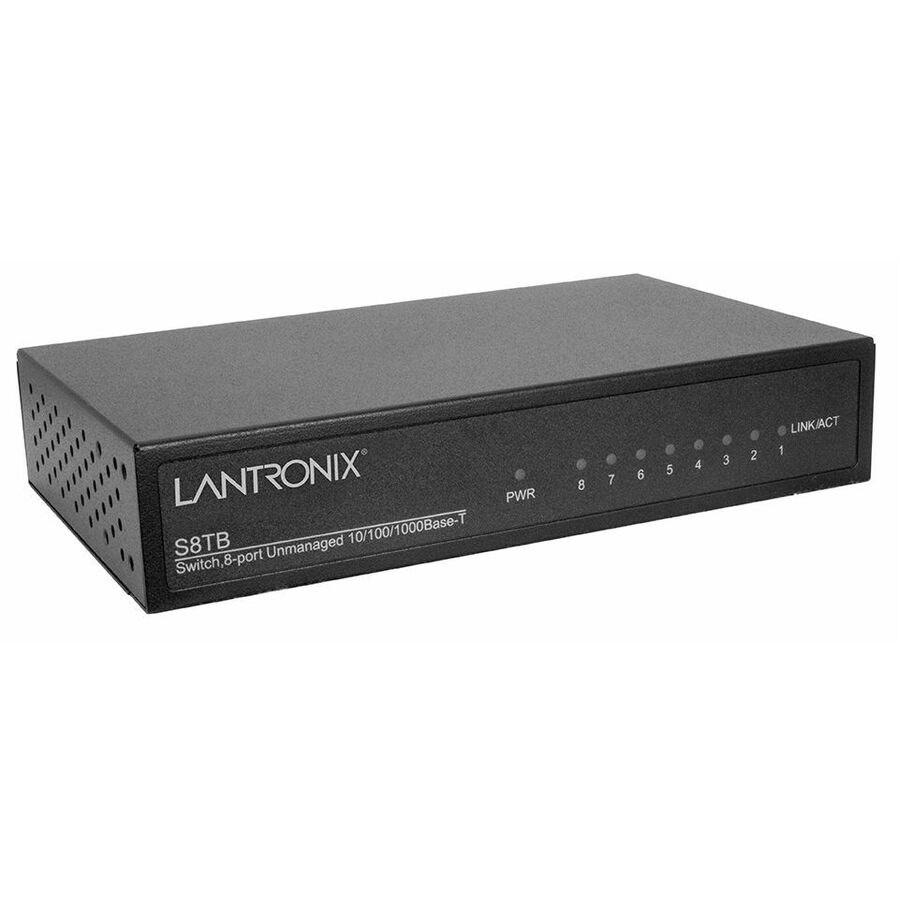

- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- S8TB
- Product Type
- Ethernet Switch
(8) 10/100/1000Base-T Ports
This (8) 10/100/1000Base-T port switch with Auto-MDI/MDIX is an unmanaged multi-port switch that can be used to build high-performance switched networks. This switch is a store-and-forward device that offers low latency for high speed networking. It is designed for the core of the network backbone computing environment to solve traffic block problems at SME (small, medium enterprise) businesses.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 8.0
- Stack Port
- No
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-TX
- I/O Expansions
- Shared SFP Slot
- No
- Network & Communication
- Networking Standards
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.3ab
- Management & Protocols
- Manageable
- No
- Power Description
- Input Voltage
- 230 V AC
- 120 V AC
- Power Source
- Power Supply
- Power Consumption
- 3.50 W
- Physical Characteristics
- Height
- 1.3"
- Width
- 3.9"
- Depth
- 6.3"
- Weight (Approximate)
- 1.35 lb
- Miscellaneous
- Package Contents
- S8TB Ethernet Switch
- Power Cord South Africa
- Application/Usage
- Network
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
