• General Information
• • Manufacturer
  • Hewlett Packard Enterprise
  • Manufacturer Website Address
  • http://www.hpe.com
  • Brand Name
  • HPE
  • Product Line
  • Comware
  • Product Series
  • 5945
  • Product Type
  • Ethernet Switch

• High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
• New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
• Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
• IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
• HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
• New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to
• address common programming issues, easing concerns about "made in China" products.

High-density, Advanced, Data Center Switches with HPE Aruba Networking IMC Orchestrator and Analyzer

• The HPE Networking Comware Switch Series 5945 enables customers to scale their server-edge 1/10/25/40/100GbE top-of-rack (ToR) deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, 32 x 40GbE ports, and 32 x 100 GbE ports.

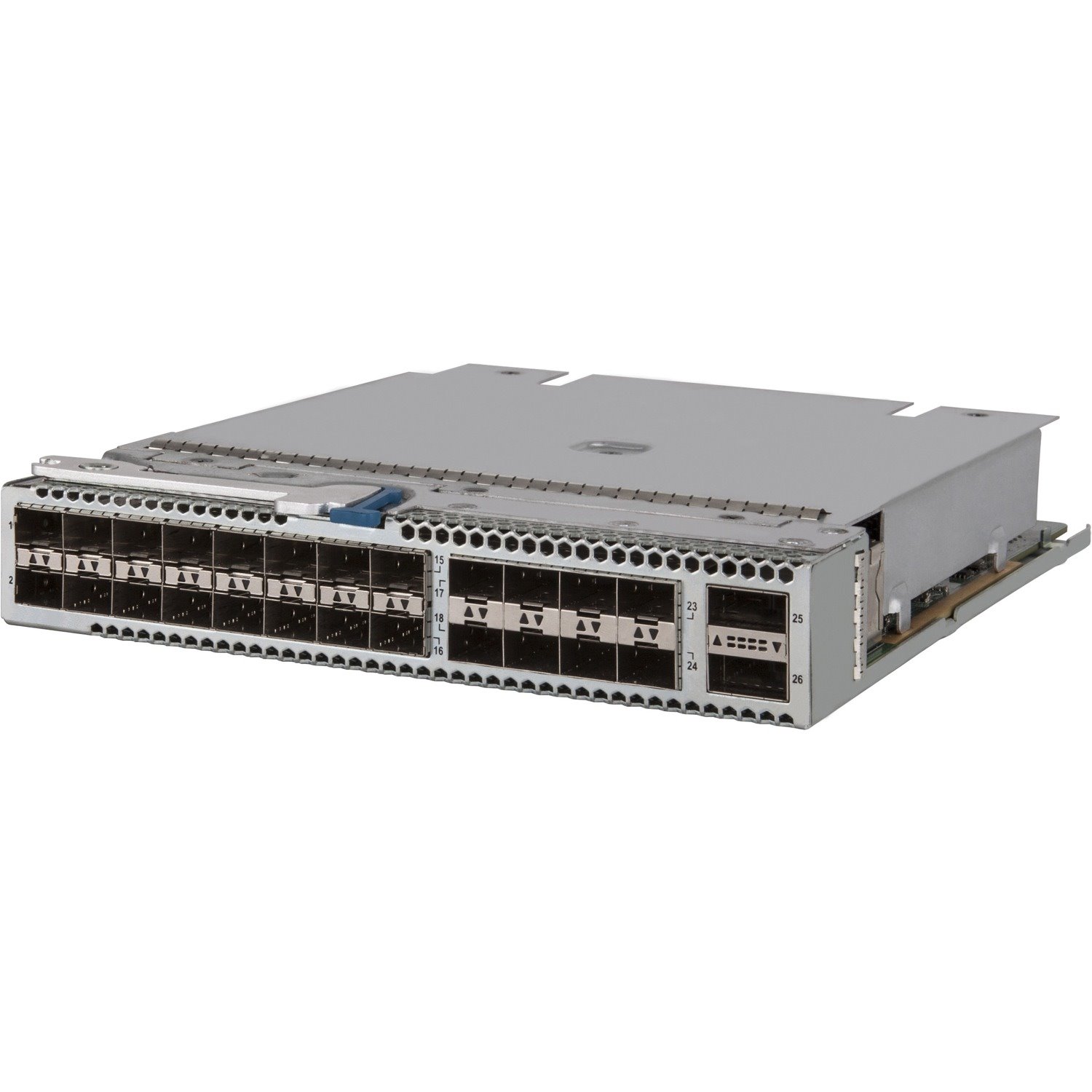

• Available with a 2-slot modular version delivering two 40GbE or 100GbE ports, 48 x 10/25GbE, 4 x 100GbE, or up to 16 x 100GbE from modules.

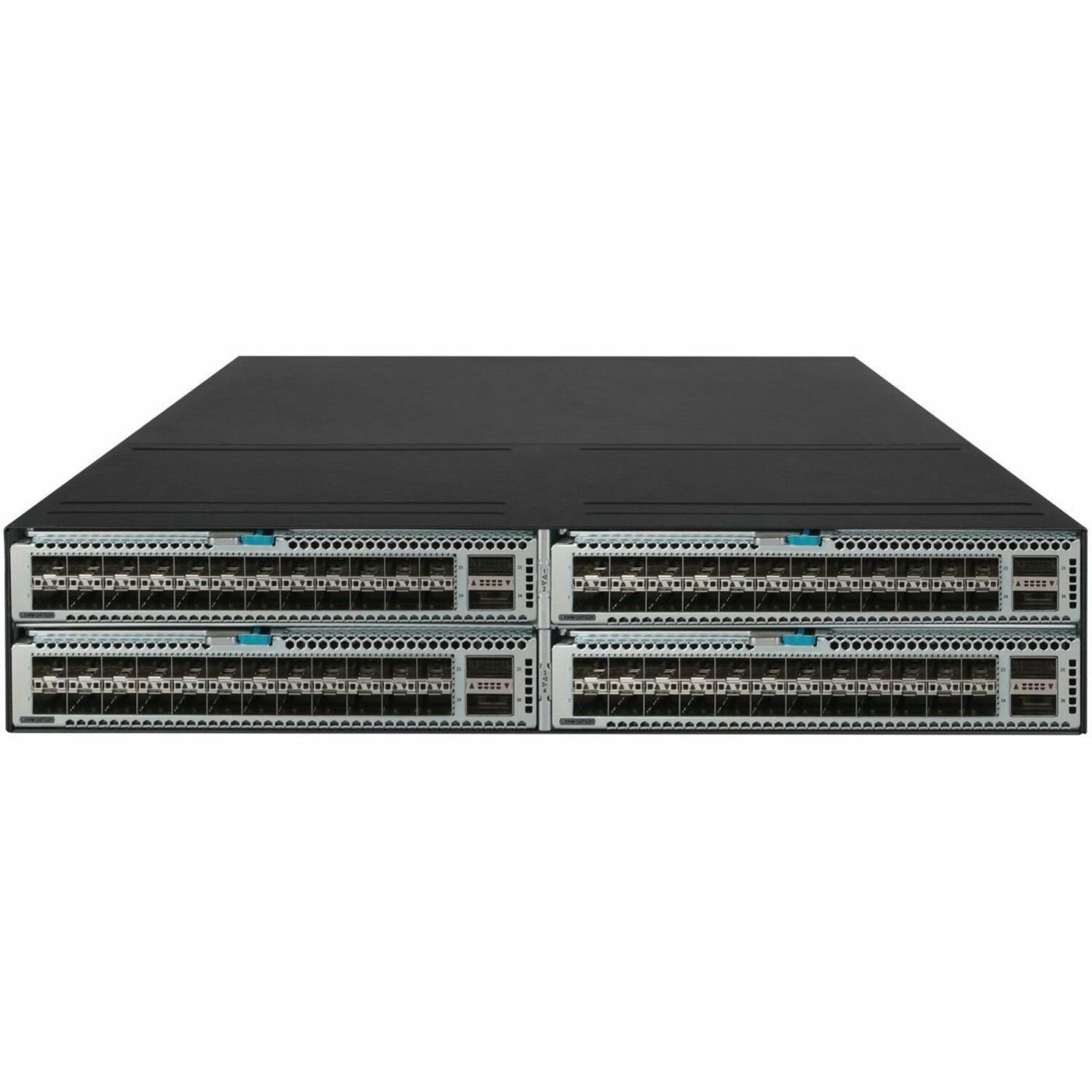

• A 4-slot modular version is also available with four 40GbE ports.
• HPE Aruba Networking IMC Orchestrator and Analyzer offers enhanced network operations with orchestration, automation, and analytical capabilities.

High-performance Data Center Switching

• The HPE Networking Comware Switch Series 5945 delivers up to 2.56 Tbps switching capacity for demanding data center applications.
• Supports up to 1904 MPPS throughput for data-intensive environments.
• Low latency, under 1µs for 40GbE, delivering increased network throughput.
• VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.

Business Agility and Resilience with Hewlett Packard Enterprise Comware 7

• The HPE Networking Comware Switch Series 5945 delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) with <50 msec convergence time enabling faster application response time.
• The In-Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

• HPE Networking Comware Switch Series 5945 simplifies switch management by up to 88% with 9-unit Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF).
• No hidden costs with simple one license per switch for all operating system features.
• All switch ports are active and ready to use without the need for activation licenses.
