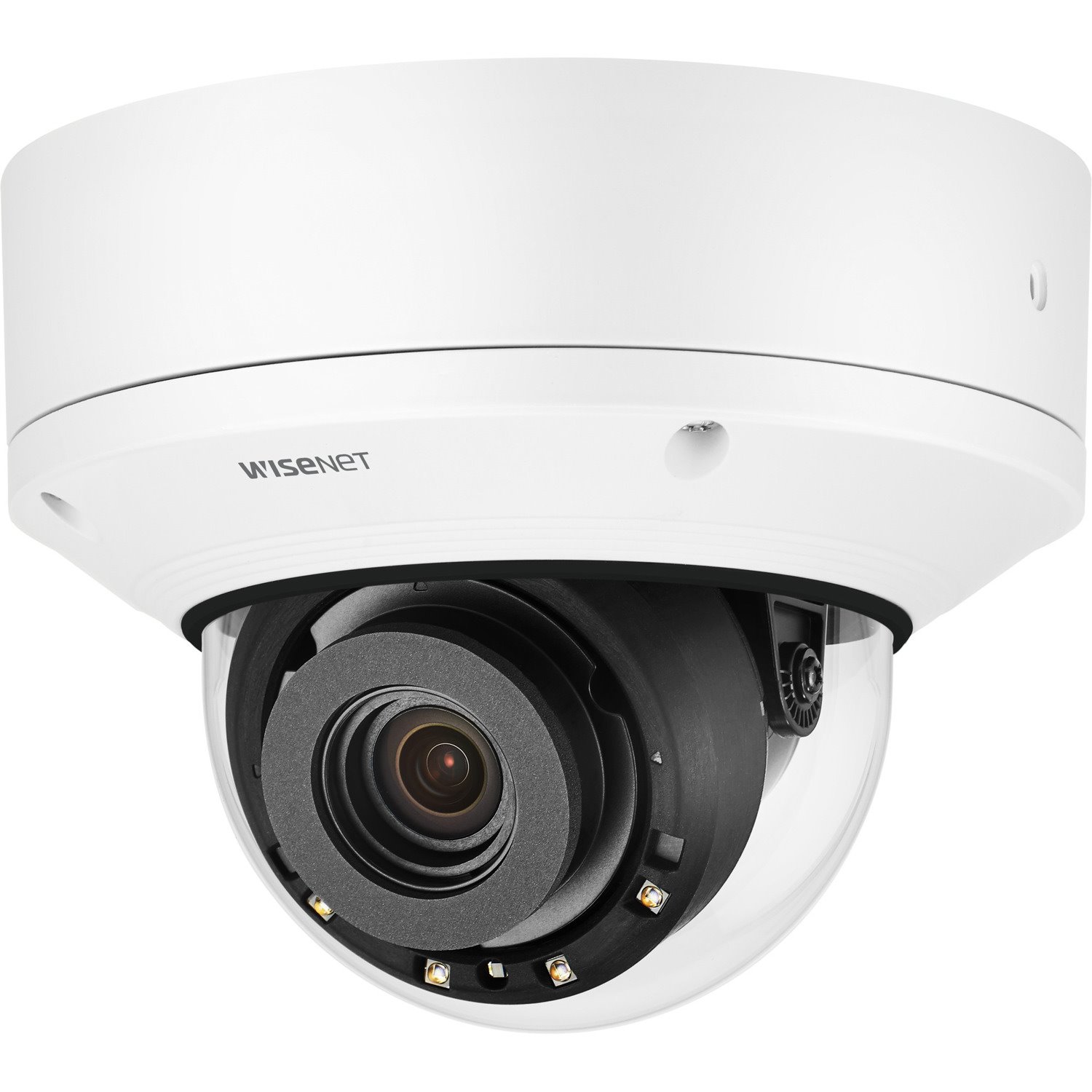

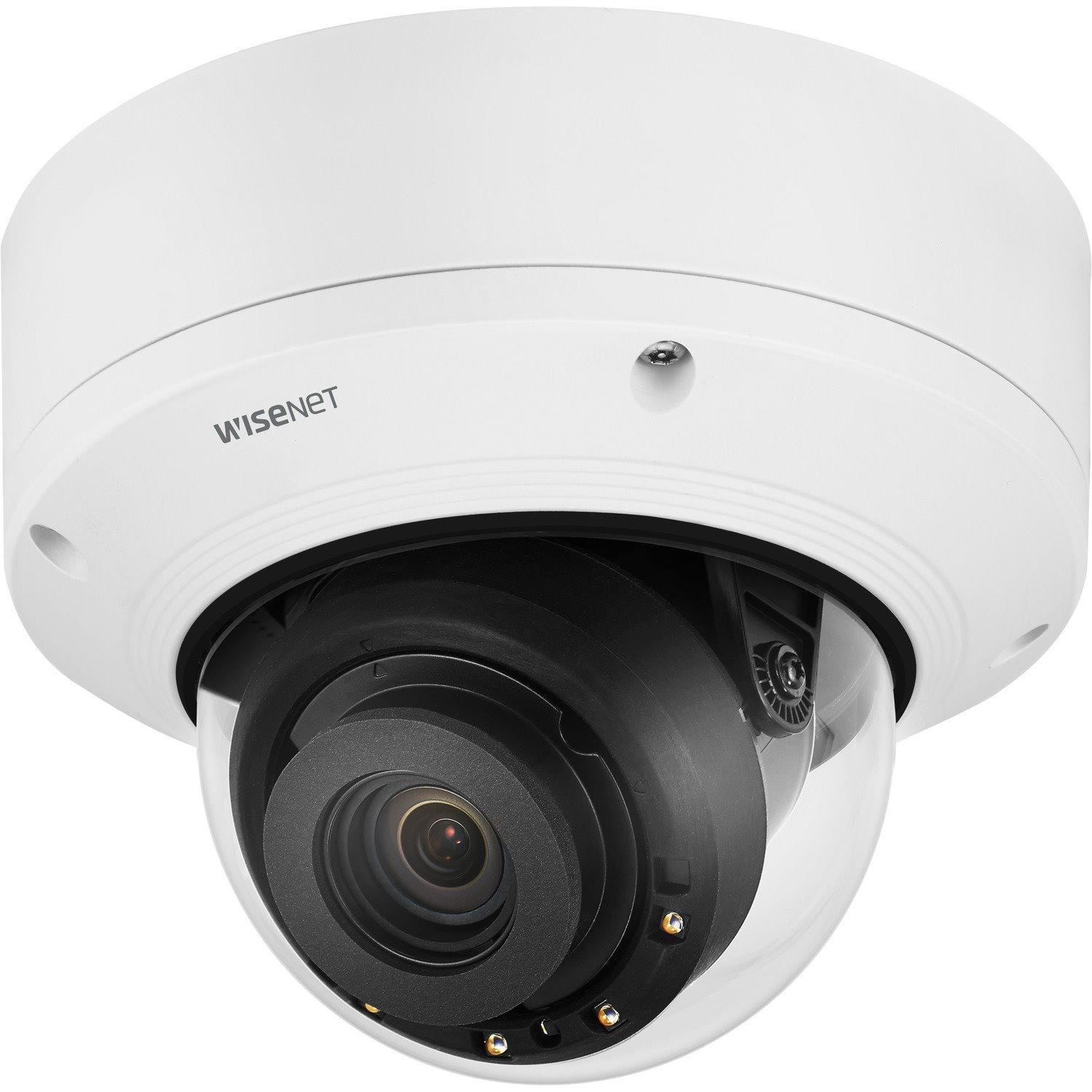

The Wisenet X series powered by Wisenet 7 network indoor vandal dome camera features a modular structure, 4K @ 30fps, motorized vari-focal lens 3x (2.8~8.4mm) (114°~40.2°). 131 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include extreneWDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card slots, hallway view, HLC, defocus detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case. Advanced cybersecurity built-in.
- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Series
- X
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 131.23 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 3840 x 2160
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 2.80 mm
- Maximum Focal Length
- 8.40 mm
- Minimum Aperture
- f/2.8
- Maximum Aperture
- f/1.2
- Optical Zoom
- 3x
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mount Type
- Corner Mount
- Pendant Mount
- Gooseneck
- Box Mount
- Backbox Mount
- Pole Mount
- Parapet Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Diameter
- 6.3"
- Weight (Approximate)
- 3.53 lb
- Environmental Conditions
- Minimum Operating Temperature
- -13°F (-25°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Indoor/Outdoor
- Indoor
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP52
- NDAA Compliant
- Yes
