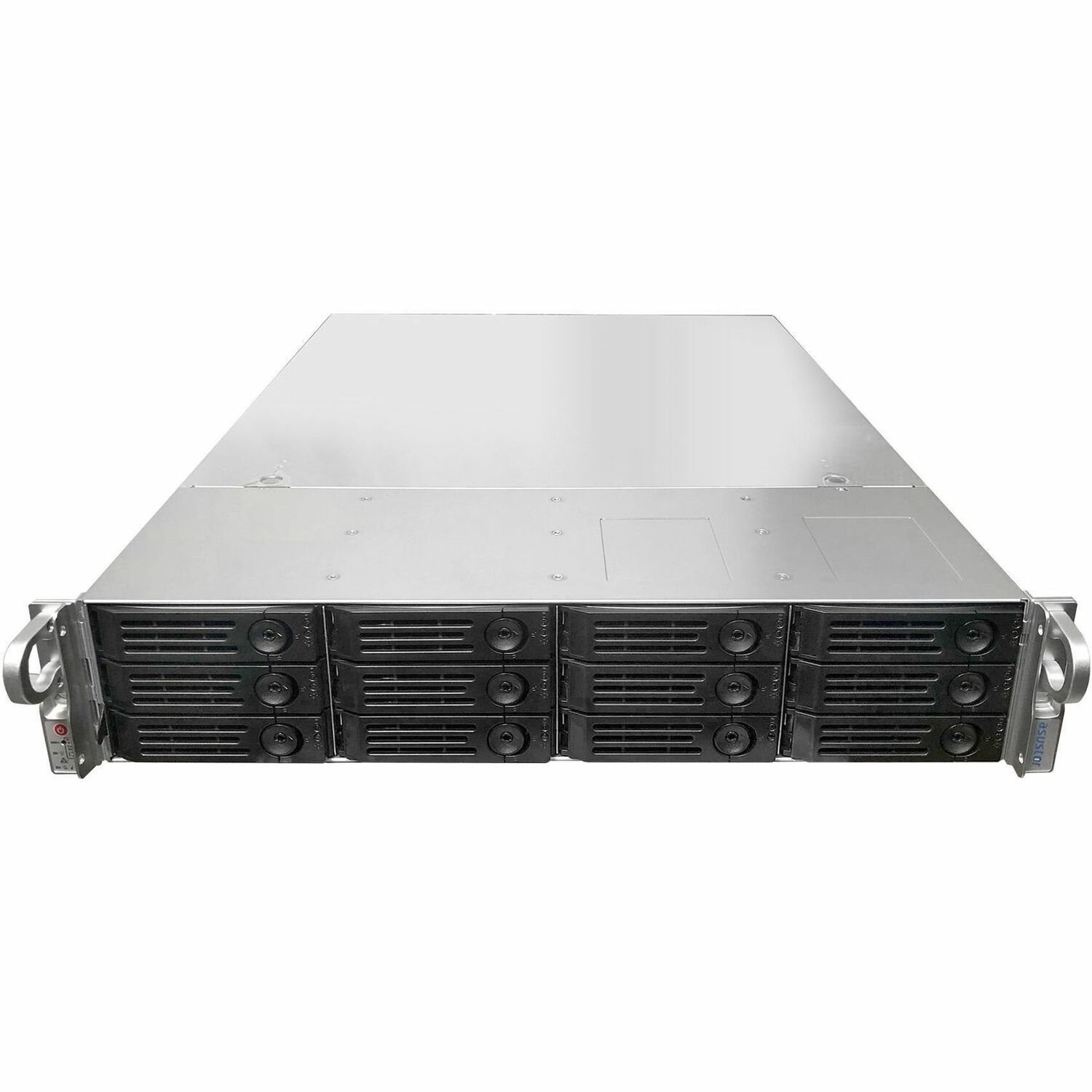

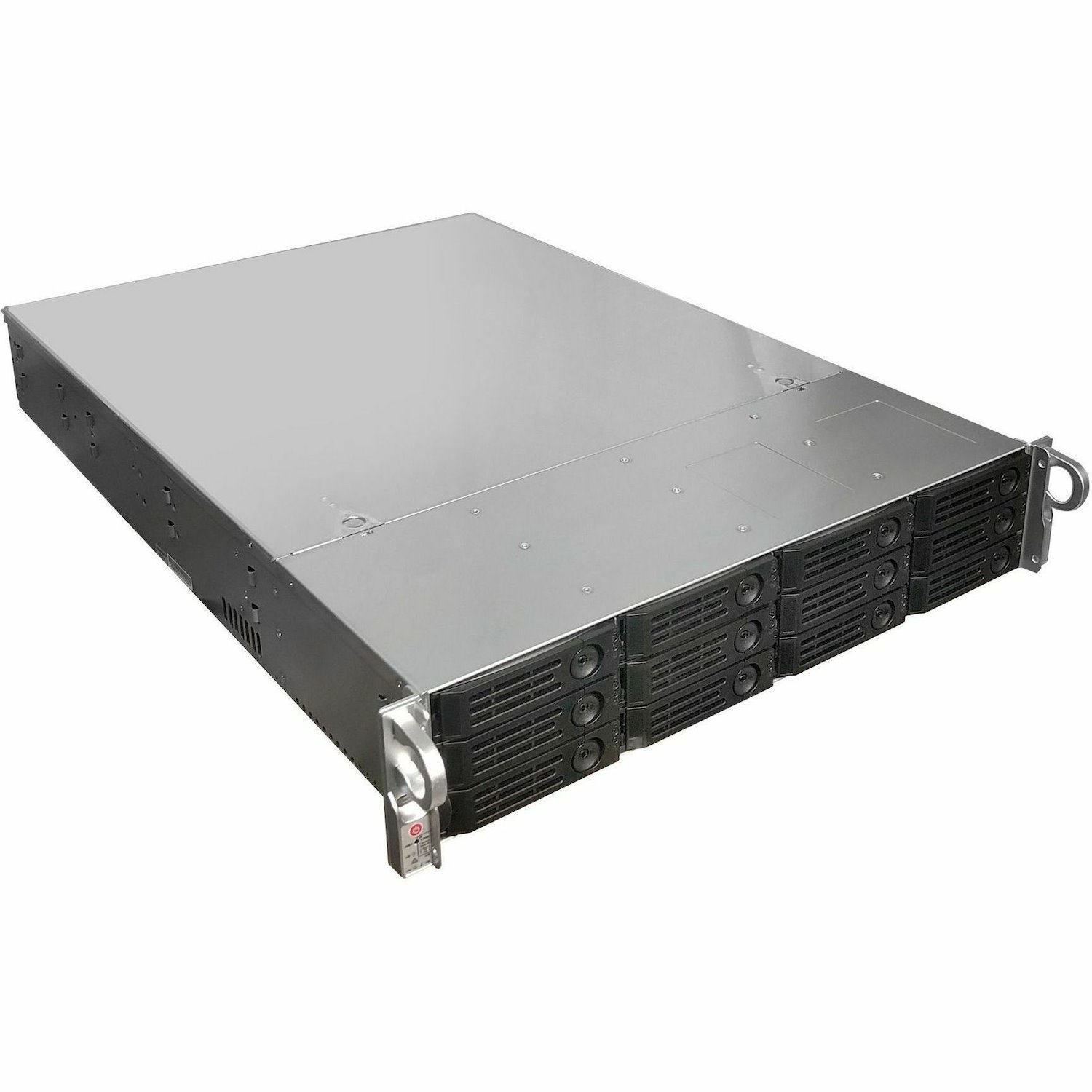

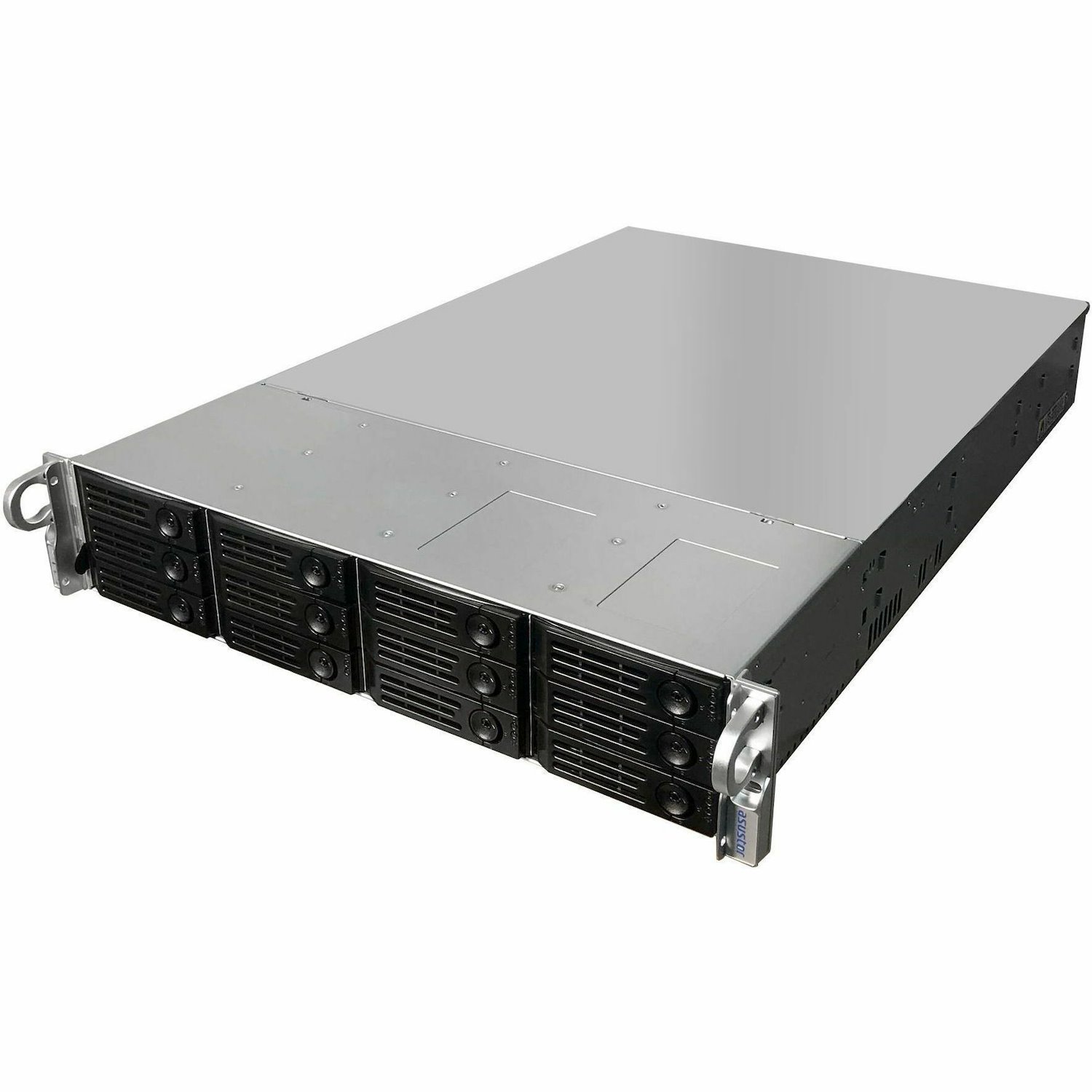

Asustor Xpanstor 12R AX7012R, 12 Bay SAS/SATA Expansion Unit, NAS Storage Capacity Expander

  • Part: 2551211
$3,331.00

Availability

Out of Stock

Expanding Storage Space

The Xpanstor 12R helps you expand your storage space while enhancing data management flexibility and efficiency. NAS devices serve as a centralized storage solution that offers convenient file sharing, remote access, and backup all in one. When attached to an ASUSTOR NAS, the Xpanstor 12R provides more drive bays for easy capacity expansion, making it especially suitable for enterprise environments that require extensive data storage and management.

Easily Configure Using Storage Manager

The Xpanstor 12R appears in ADM natively and drives appear within Storage Manager, which makes managing and configuring the attached expansion unit easy. Use Storage Manager to set up RAID configurations as well as utilize snapshot features to further enhance data security and reliability.

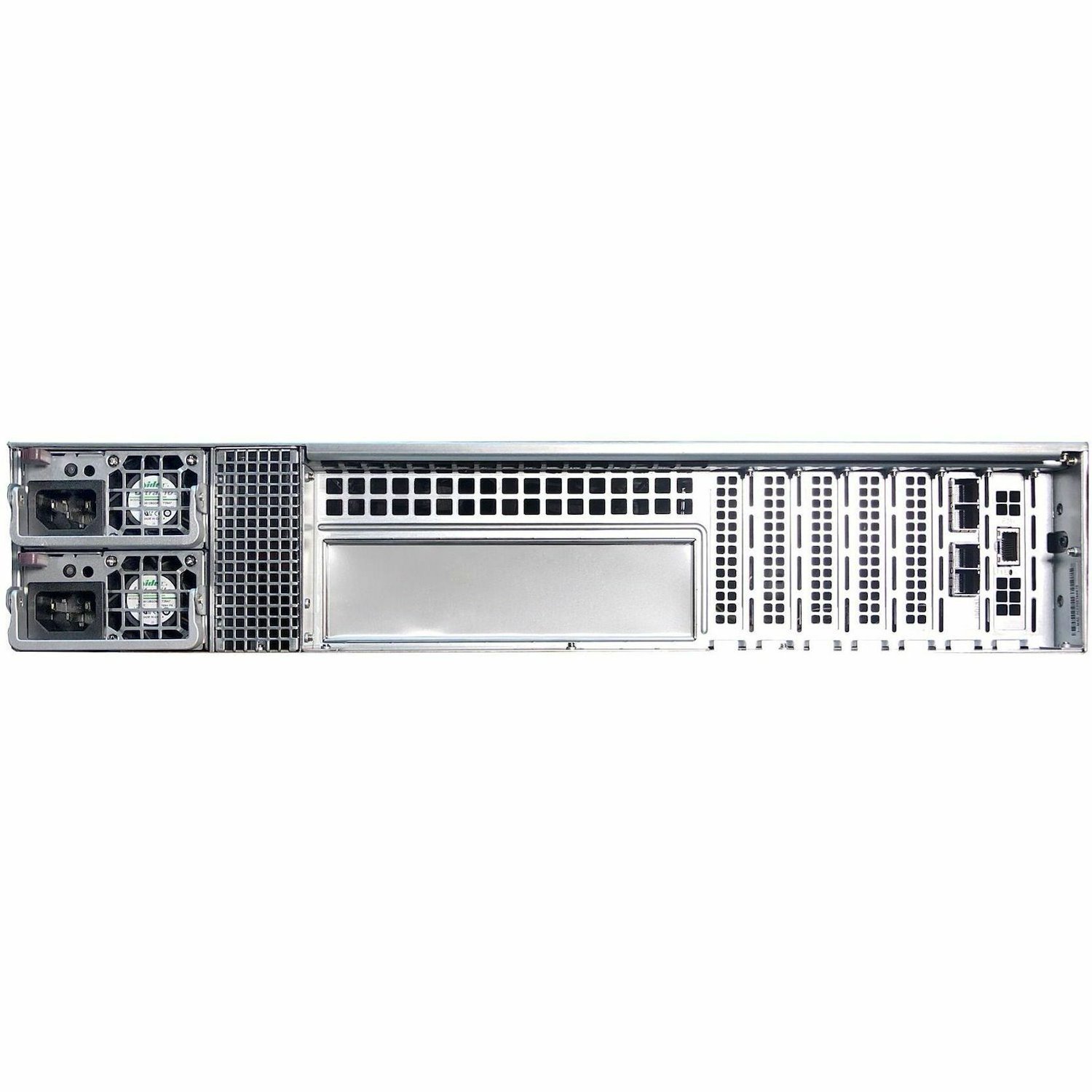

Dual Redundant Power Supplies and Hot-Swappable Fan Design

The Xpanstor 12R is equipped with two 650W redundant power supplies and three hot-swappable fans, which increases overall operational efficiency and fault tolerance. Both power supplies can automatically switch to the other in the event one fails, ensuring continuous operation and data security. The hot-swappable fan design allows for fan replacement without downtime, effectively reducing maintenance and upgrade costs.

First-Class Product Warranty

The Xpanstor 12R comes with a five year warranty. ASUSTOR continues to make customer service a priority in providing the highest standard of after-sales service and technical support.

  • General Information
    • Manufacturer
    • ASUSTOR
    • Manufacturer Website Address
    • http://www.asustor.com
    • Brand Name
    • ASUSTOR
    • Product Line
    • Xpanstor 12R
    • Packaged Quantity
    • 1
    • Product Type
    • NAS Storage System
  • Warranty
    • Limited Warranty
    • 5 Year

  • Storage
    • Number of Hard Drives Supported
    • 12
    • Number of Hard Drives Installed
    • 0
    • Number of Solid State Drive Supported
    • 12
    • Number of Solid State Drive Installed
    • 0
    • Flash Memory Capacity
    • 2 MB
  • I/O Expansions
    • Number of Total Expansion Bays
    • 12
    • Number of 2.5"/3.5" Bays
    • 12
  • Controllers
    • Controller Type
    • Serial ATA/600
    • Serial Attached SCSI (SAS)
    • RAID Supported
    • Yes
    • RAID Levels
    • 0, 1, 5, 6, 10, JBOD
  • Interfaces/Ports
    • Number of SAS Ports (External)
    • 2
  • Software
    • Operating System
    • ADM 4.2.4
  • Power Description
    • Number of Power Supplies Installed
    • 2
    • Maximum Power Supply Wattage
    • 650 W
    • Redundant Power Supply
    • Yes
  • Physical Characteristics
    • Height
    • 3.5"
    • Width
    • 17.2"
    • Depth
    • 25.5"
    • Form Factor
    • Rack-mountable
    • Rack Height
    • 2U
    • Weight (Approximate)
    • 28.99 lb
  • Miscellaneous
    • Package Contents
      • XPANSTOR 12 (AX7012R)
      • 2 x AC Power Cord
      • 1 x SFF-8644
      • AX-Rail
      • 48 x Flat Head Screw (for 2.5" HDD)
